Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output

Name: Power Control Analog Panel Ammeter 90 Degree Analog Ac Ammeter With 420ma Output
Brand: WDLYCH
Price: 1 USD

China Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output wholesale

Brand Name : WDLYCH

Model Number : WDZ96-ACA

Certification : ISO9001, CE, CCS

Place of Origin : Wuhan, Hubei, China

MOQ : 10Pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10,000PCSC/Month

Delivery Time : 7 Working Days after advanced payment

Packaging Details : Inner color box with outer export carton

Product Name : Analog Ammeter

Application : Marine Type

Measurement : AC Current

Material : ABS Plastic Shell Housing

Color : Black+White

Standard : IEC60092-50

Certificate : CCS,CE, ISO9001

Warranty : One Year

Contact Now

Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output

1. Products Description:

Summary & Application:

This type of meters are analog electric measuring instruments, widely used for measuring AC/DC current, voltage, frequency, power,

power factor, insulation resistance and synchronous indicating in AC/DC transmitting & distributing power system, switchboard, other electric & non-electric instruments.

Technical Parameters:

Model Number	WDZ96-ACA
Usage	Marine application
Measuring Range	0-100A, By CT
Accuracy Class	1%
Power Supply	24VDC, 110VAC,220VAC,380VAC
Transducing Output	4-20mA

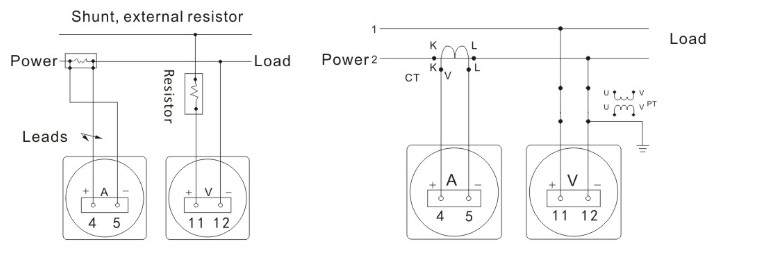

Wiring Diagram

Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output

2. Application:

WD series meter are direct acting indicating analogue electrical measuring instruments. Measuring DC/AC current, voltage, frequency, power, power factor, phase sequence, synchroscope, position indication, network insulation moniroting, hours fun meter and other non-electric measurement;
Mainly used in various AC/DC transmission and distribution system, power control panel and electric equipment for various industries such as marine,rail, aviation, chemical and explosive-proof,nuclear power, hig/mid voltage equipment, power generator set and control engineering. It is high end meter, and suitable for complicated environment to measure electric/non-electric energy;
Also used on low voltage equipment, construction/mechanical equipment, various AC/DC power distribution system, electrical control panel and equipment. It is mid/low end meter, and suitable for universal environmental to measure electric/non-electrical energy.
